 Post subject: Speaker recone by Mark Pictures re-added
PostPosted: Apr Fri 22, 2011 7:54 pm
Member

Joined: Feb Sun 24, 2008 4:21 am
Posts: 4561
Location: Sedona, AZ/ Placentia CA
This is from Mark and his comments. Nice approach to recone, he like many has not quite mastered the posting of pictures. This came by e-mail from him. Jerry

Ok attached are some pix of Philco speaker I made a cone for recently. Note I made some mock ups first, then test fit it since I am NOT an artist. A little refinement and it fit under the voice coil and up to the surround... I did it a little at a time. When done, it played like new.
Materials... X-Acto knife, glue (rubber cement mainly), electrical tape (to temporarily hold stuff in place), manilla business envelope paper and scissors. Oh, and about 70 minutes of time.
Mark Oppat
Antique Audio
253 Blanche St
Plymouth, M





Hope I did you right on this Mark, thanks for sharing. Sorry, when reposted, they are slightl out of order!

Jerry

_________________
A friend in need is a pest. Bill Slee ca 1972


Last edited by JerryHawthorne on Nov Mon 07, 2011 7:18 am, edited 3 times in total.

Top
 Profile

 Post subject:
PostPosted: Apr Fri 22, 2011 9:54 pm
Member
User avatar

Joined: Mar Tue 30, 2010 2:24 am
Posts: 7435
Location: Lehighton, PA.
Photos don't appear. You're linking to your album rather than directly to the image. Use the "IMG code" for each individual image. When posting use the "Preview" button to test it before submitting it.

Larry


Top
 Profile

 Post subject:
PostPosted: Apr Sat 23, 2011 12:25 am
Member

Joined: Feb Sun 24, 2008 4:21 am
Posts: 4561
Location: Sedona, AZ/ Placentia CA
Sorry Larry, but when I pull it up, all pictures are there. Don't understand why you don't see them. :lol:

_________________
A friend in need is a pest. Bill Slee ca 1972


Top
 Profile

 Post subject:
PostPosted: Apr Sat 23, 2011 2:02 am
Member

Joined: Sep Thu 02, 2010 4:15 pm
Posts: 25
Location: Harvard, MA
Nope - no pictures when I look at the post. Just photobucket icons that say "the image or video has been moved or deleted"


Top
 Profile

 Post subject:
PostPosted: Apr Sat 23, 2011 2:10 am
Silent Key
User avatar

Joined: Feb Wed 03, 2010 1:01 am
Posts: 5110
Location: Crawfordsville, Indiana 47933
JerryHawthorne wrote:
Sorry Larry, but when I pull it up, all pictures are there. Don't understand why you don't see them. :lol:
No pictures here either. Send them to my email and I will try to post for you.

Bill

_________________
ka9cwk


Top
 Profile

 Post subject:
PostPosted: Apr Sat 23, 2011 2:47 am
Member
User avatar

Joined: Mar Thu 20, 2008 4:02 pm
Posts: 2274
Location: Prescott AZ
Hey Jerry,
I can't see them either. Your computer must have some magic dust that makes them visible.

Mark
:shock:

_________________
I need more space!


Top
 Profile

 Post subject:
PostPosted: Apr Sat 23, 2011 2:50 am
Moderator

Joined: Jan Thu 01, 1970 1:00 am
Posts: 35171
Location: Livermore, CA
Pictures were there before but not now.

_________________
Norm


Top
 Profile

 Post subject:
PostPosted: Apr Sat 23, 2011 5:34 am
Member
User avatar

Joined: Jan Thu 01, 1970 1:00 am
Posts: 2937
Location: The Right Corner of Texas, 75451
Not surprising. I just went to an old thread in response to another post and ran into the same problem with photobucket, yet I know the album is still there since it is mine. I had so much trouble trying to upload about a week ago that I moved my account to another photo hosting site for future use. I have not been there long enough yet to make a recommendation on their reliability, but my further use of photobucket will depend on their getting their act together.

_________________
Ron Mc/


Top
 Profile

 Post subject:
PostPosted: Apr Sat 23, 2011 6:13 am
Member

Joined: Feb Sun 24, 2008 4:21 am
Posts: 4561
Location: Sedona, AZ/ Placentia CA
Really sorry, I viewed the pics a couple of times and poof, gone. They were moved in as img pictures. Unfortunately, I have deleted the originals. Perhaps if Mark sends them again I can give it another shot.
Jerry

_________________
A friend in need is a pest. Bill Slee ca 1972


Top
 Profile

 Post subject:
PostPosted: Apr Sat 23, 2011 7:16 pm
Member
User avatar

Joined: Jan Thu 01, 1970 1:00 am
Posts: 2937
Location: The Right Corner of Texas, 75451
They are up now and I saved them for future reference. Thanks for the info. Looks straightforward enough.

_________________
Ron Mc/


Top
 Profile

 Post subject:
PostPosted: Apr Sat 23, 2011 10:47 pm
Member
User avatar

Joined: Mar Tue 30, 2010 2:24 am
Posts: 7435
Location: Lehighton, PA.
All better! :D

Larry


Top
 Profile

 Post subject:
PostPosted: Apr Sun 24, 2011 2:16 am
Member

Joined: Jan Thu 01, 1970 1:00 am
Posts: 16284
Location: ID 83301
It would be better to take the cone from a PM speaker i think .


Top
 Profile

 Post subject:
PostPosted: Apr Sun 24, 2011 8:26 am
Member

Joined: Jan Thu 01, 1970 1:00 am
Posts: 1997
Location: England
I have done as Ken says... Used the cone from a surplus Philips PM speaker and it worked fine. Looked very neat as well.

Gary


Top
 Profile

 Post subject:
PostPosted: Apr Sun 24, 2011 6:51 pm
Member

Joined: Jan Thu 01, 1970 1:00 am
Posts: 4479
Location: 253 Blanche St. Plymouth, MI USA
you often can not use another cone... due to the pitch (depth) of each speaker being different... its very hard to do. My method will always work on any vintage radio speaker that has an intact spider and voice coil and some area of scrap flange at the voice coil to bond to. Also, really helps if there is some surround left as there was in this case, I was able to re-use it. Otherwise you have to make one with chamois or similar material.

Mark Oppat
****


Top
 Profile

 Post subject: Re: Speaker recone by Mark Pictures re-added
PostPosted: Aug Thu 25, 2011 2:52 pm
Member

Joined: Oct Wed 28, 2009 1:17 pm
Posts: 1848
Location: Kingston Ontario
I was just reading the hint and kinks of reconing a speaker, but pictures are not there . Can anyone show me them as I have one I am going to do for a Templeton.It is 14'' across.
Thanks
Bruce


Top
 Profile

 Post subject: Re: Speaker recone by Mark Pictures re-added
PostPosted: Aug Thu 25, 2011 5:54 pm
Member

Joined: Feb Sun 24, 2008 4:21 am
Posts: 4561
Location: Sedona, AZ/ Placentia CA
Bruce, looks like the pics went poof again. TexMac indicates he saved them also you could e-mail Mark and see if he could forward to you. Sorry, after posting I failed to save them.

Jerry

_________________
A friend in need is a pest. Bill Slee ca 1972


Top
 Profile

 Post subject: Re: Speaker recone by Mark Pictures re-added
PostPosted: Aug Thu 25, 2011 6:49 pm
Member
User avatar

Joined: Jan Thu 01, 1970 1:00 am
Posts: 2937
Location: The Right Corner of Texas, 75451
Bruce,
I did save Mark's photos and comments in a rtf file. I also have a Foxlingo translation of a similar article with good photos and a calculation of cone shape that I got from http://www.leradiodisophie.it . I could not connect to the article, but the site still exists, so you might be able to track it down. Alternatively, I could maybe convert what I have to a pdf and get it to you. Send me your e-mail address if interested.

_________________
Ron Mc/


Top
 Profile

 Post subject: Re: Speaker recone by Mark Pictures re-added
PostPosted: Nov Tue 08, 2011 7:15 am
Member

Joined: Jan Thu 01, 1970 1:00 am
Posts: 4479
Location: 253 Blanche St. Plymouth, MI USA

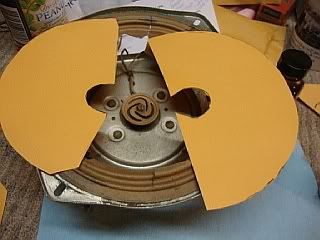

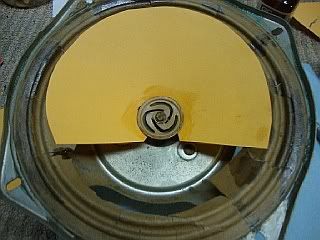

If you look at the finished cone carefully, you will note I cut the abutting edges of the two "halfs" (they are each more than half) so they interlocked. Made it easier to join and glue up.
